Protect Laserschutz Ontor Laser safety glasses Filter: 0278

Product description

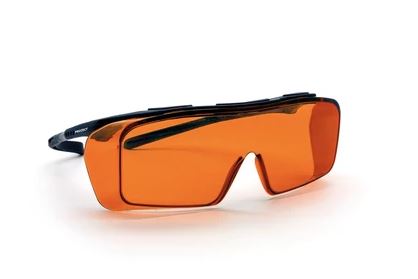

The ONTOR is a lightweight laser safety goggles made of special polymers, as perfect solution to wear over prescription glasses. This frame offers a large field of vision, and lateral impact protection. The temples can be adjusted individually and a tightly sealed soft face foam improves the wearing comfort.

The Laser Safety Filter 0278 is suitable for many lasers like excimer, UV, Nd:YAG(4x), Nd:YAG(3x), Nd:YAG KTP, Ti:sapphire, diode, disk, Nd:YAG, fibre and CO2. The laser safety filter consists of dark orange special plastics and offers a visual light transmission (VLT) of 30% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207. Product information
Application: Nd:YAG 2x (532 nm), Nd:YAG (1064 nm), Nd:YAG Q-switched (532 + 1064 nm), Nd:YAG + harmonische (266 + 355 + 532 + 1064 nm)
VLT (Visible light transmission): 30 %
Filter color: orange
Filter material: polymer
Filter thickness: 2.0 mm
Frame color: black Protection Levels: 180 – 315 D LB10 + IR LB5 + M LB6Y (OD 10+)
> 315 – 532 D LB6 + IR LB8 + M LB10 (OD 10+)
533 – 534 D LB6 + IR LB7 (OD 7+)
> 534 – 536 DIR LB6 (OD 6+)
> 536 – 538 DIR LB5 (OD 5+)
> 538 – 541 DIR LB4 (OD 4+)
> 541 – 544 DIR LB3 (OD 3+)
> 544 – 548 DIR LB2 (OD 2+)
> 548 – 554 DIR LB1 (OD 1+)
682 – 727 DIR LB1 (OD 1+)
> 727 – 759 DIR LB2 (OD 2+)
> 759 – 785 DIR LB3 (OD 3+)
> 785 – 799 DIR LB4 (OD 4+)
800 – 819 DIR LB4 (OD 4+)
> 819 – 851 DIR LB5 (OD 5+)
> 851 – 882 D LB6 + IRM LB7 (OD 7+)
> 882 – 924 D LB6 + IRM LB8 (OD 8+)
> 924 – 1070 D LB6 + IRM LB9 (OD 9+)
950 – 1065 D LB6 + IR LB9 + M LB10 (OD 10+)
> 1071 – 1078 D LB6 + IRM LB8 (OD 8+)
> 1078 – 1080 D LB6 + IRM LB7 (OD 7+)
> 1080 – 1082 DIR LB6 (OD 6+)
> 1082 – 1085 DIR LB5 (OD 5+)
> 1085 – 1101 DIR LB4 (OD 4+)
> 1101 – 1117 DIR LB3 (OD 3+)
> 1117 – 1133 DIR LB2 (OD 2+)
> 1133 – 1164 DIR LB1 (OD 1+)
> 5140 – 11500 DI LB4 + R LB3Y (OD 4+)
PF CE

All of our protect laserchutz glasses are built on order. Orders take upto 4 weeks for build and delivery.
