Protect Laserschutz Ontor Laser safety glasses Filter: 0273

Product description:

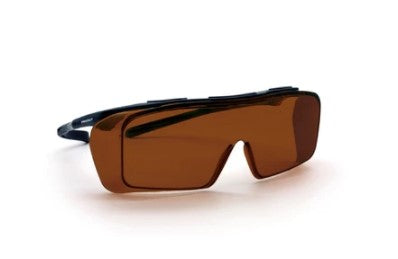

The ONTOR is a lightweight laser safety goggles made of special polymers, as perfect solution to wear over prescription glasses. This frame offers a large field of vision, and lateral impact protection. The temples can be adjusted individually and a tightly sealed soft face foam improves the wearing comfort.

The Laser Safety Filter 0273 is suitable for many lasers in the IR range of light, like Alexandrit (755 nm), Ti:Saphir (800 nm) and Nd:YAG (1064 nm). But the filter covers also many laser wavelengths in the UV sector, like Excimer (193nm), UV (248nm) and harmonic Nd:YAG (266 nm + 355nm + 532nm). The laser safety filter consists of brown special plastics and offers an visual light transmission (VLT) of 15% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207. Product information
Application: Nd:YAG + harmonische (266 + 355 + 532 + 1064 nm)
VLT (Visible light transmission): 15 %
Filter color: brown
Filter material: polymer
Filter thickness: 2.0 mm
Frame color: black Protection Levels:

180 – 315 D LB10 + IR LB5 + M LB6Y (OD 10+)
> 315 – 532 D LB6 + IR LB8 + M LB9 (OD 9+)
533 – 538 DIRM LB5 (OD 5+)
539 – 542 DIRM LB4 (OD 4+)
543 – 545 DIRM LB3 (OD 3+)
546 – 550 DIRM LB2 (OD 2+)
551 – 558 DIRM LB1 (OD 1+)
622 – 648 DIRM LB1 (OD 1+)
649 – 660 DIRM LB2 (OD 2+)
661 – 696 DIRM LB3 (OD 3+)
697 – 711 DIRM LB4 (OD 4+)
712 – 719 DIRM LB5 (OD 5+)
720 – 722 DIRM LB6 (OD 6+)
723 – 734 D LB6 + IR LB7 + M LB7Y (OD 7+)
735 – 770 D LB6 + IR LB8 + M LB7Y (OD 8+)
771 – 815 DIRM LB6 (OD 6+)
816 – 825 D LB6 + IRM LB7 (OD 7+)
826 – 839 D LB6 + IRM LB8 (OD 8+)
840 – 1080 D LB6 + IRM LB8 (OD 8+)
950 – 1065 D LB6 + IRM LB9 (OD 9+)
1081 – 1087 DIRM LB6 (OD 6+)
1088 – 1098 DIRM LB5 (OD 5+)
1099 – 1109 DIRM LB4 (OD 4+)
1110 – 1123 DIRM LB3 (OD 3+)
1124 – 1141 DIRM LB2 (OD 2+)
1142 – 1170 DIRM LB1 (OD 1+)
4785 – 5040 DI LB4 + R LB3Y (OD 4+)
5041 – 5150 DI LB3 + R LB3Y (OD 3+)
5151 – 11500 DI LB4 + R LB3Y (OD 4+)
PF CE

All of our protect laserchutz glasses are built on order. Orders take upto 4 weeks for build and delivery.
