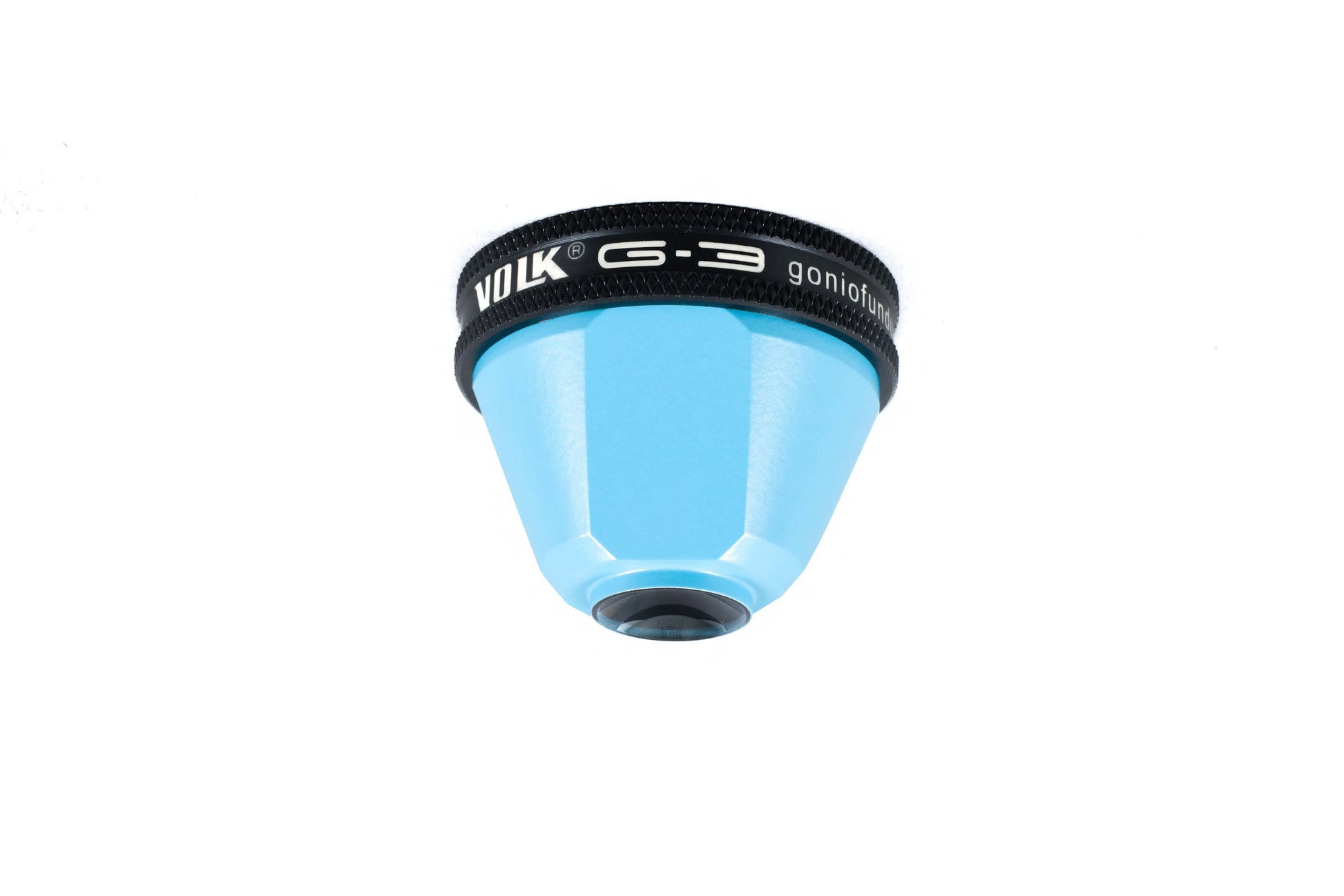

G-3 Gonio Lens
G-3 Gonio Lens
Couldn't load pickup availability
3-Mirror, All-Glass Design
- 60° mirror provides a view of the iridocorneal angle
- 66° mirror provides a retinal image from the equator to the ora serrata
- 76° mirror provides a view of the mid-peripheral/peripheral retina
- Available in two formats: flanged (recommended for laser trabeculoplasty) and no flanged (recommended for routine gonioscopy)
- This three mirror Goldman-style lens equipped with unbeatable Volk optics is a must have for every Glaucoma specialist
| Mirror Angles | Image Magnification | Laser Spot Size | Contact Diameter |
| 60°/66°/76° |
Flange: 1.06x No Flange: 1.03x Mini, No Flange: 1.0x |
Flange: 0.94x No Flange: 0.97x Mini, No Flange: 1.0x |
Flange: 15 mm No Flange: 11.4 mm Mini, No Flange: 9.6 mm |
With Flange - PART #VG3
No Flange - PART #VG3NF
Mini, No Flange - PART #VG3MININF
