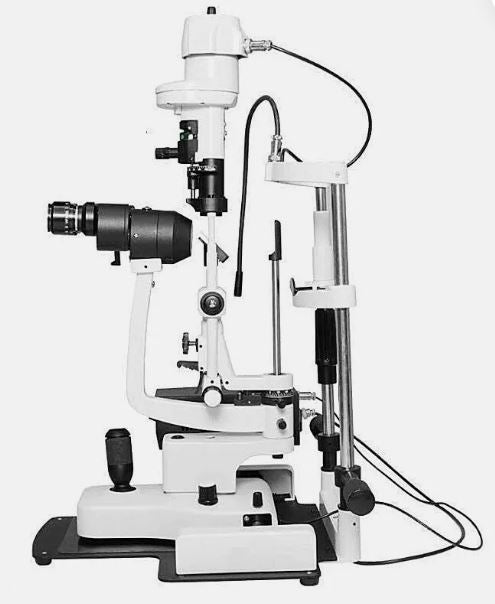

Ergonomic tilt-able slit lamp

Description

OPHTHALMIC BINOCULAR SLIT LAMP

Model : LS-2i

In ophthalmology and optometry, the instrument is called a “slit lamp”. The Slit Lamp is an instrument consisting of a high-intensity light source that can be focused to shine a thin sheet of light into the eye. The binocular slit-lamp examination provides a stereoscopic magnified view of the eye structures in detail, enabling anatomical diagnoses to be made for a variety of eye conditions.

A slit lamp is a microscope with a bright light used during an eye exam. It gives your ophthalmologist a closer look at the different structures at the front of the eye and inside the eye. It’s a key tool in determining the health of your eyes and detecting eye disease which includes the eyelid, sclera, conjunctiva, iris, natural crystalline lens, and cornea, macular degeneration, detached retina, cataracts, blockages of the retinal vessel.

WE HAVE MANY MODELS IN SLIT LAMP SUCH AS
SLIT LAMP (HAAG-STREIT TYPE ) IN 2 STEP MAGNIFICATION
SLIT LAMP (HAAG-STREIT TYPE ) IN 3 STEP MAGNIFICATION
SLIT LAMP (HAAG-STREIT TYPE ) IN 5 STEP MAGNIFICATIO

Slit lamp With 2 Steps Magnification

TECHNICAL SPECIFICATIONS:

• Binocular Slit lamp Microscope
• Eye Pieces: 10x, 15x
• Objective: 1x, 1.6x
• Total Magnification: 10x, 16x and 24x

ILLUMINATION

• Slit Image Rotation: 0 degree to 180 degree
• Tilting Illumination upto: 20 degree
• Filter Disc.: Cobalt Filter, Green Filter, Yellow Filter, Natural density and open aperture
• Slit Disphragm Disc: Six apertures of 12, 9, 7, 3 and 0.2mm and wedge shaped diaphragm for
• infinitely variable slit lengths.
• Halogen Lamp: 6 Volt 20 Watts

STANDARD ACCESSORIES

• 15x Eyepieces
• Replacing Lamp one piece for illumination unit
• Replacing Mirror
• Plastic breath shield
• Testing Rod
• Dust Cover
• Fuse

OPTIONAL ACCESSORIES (price on request)

• Manual Table
• Motorized Table
